Compact Nylon Hoist Supplier Pune

Lifting System for Industrial Spaces

We are supplying compact nylon hoists manufactured for light to medium-duty lifting operations across restricted areas. These hoists feature a space-saving profile, high tensile nylon body, and durable load chain mechanism, allowing users to handle suspended weights safely in warehouses, assembly units, and tool rooms.

• Manual Chain Nylon Hoist (250 kg – 1 Ton)
• Nylon Wire Rope Hoist with Trolley (500 kg – 2 Ton)

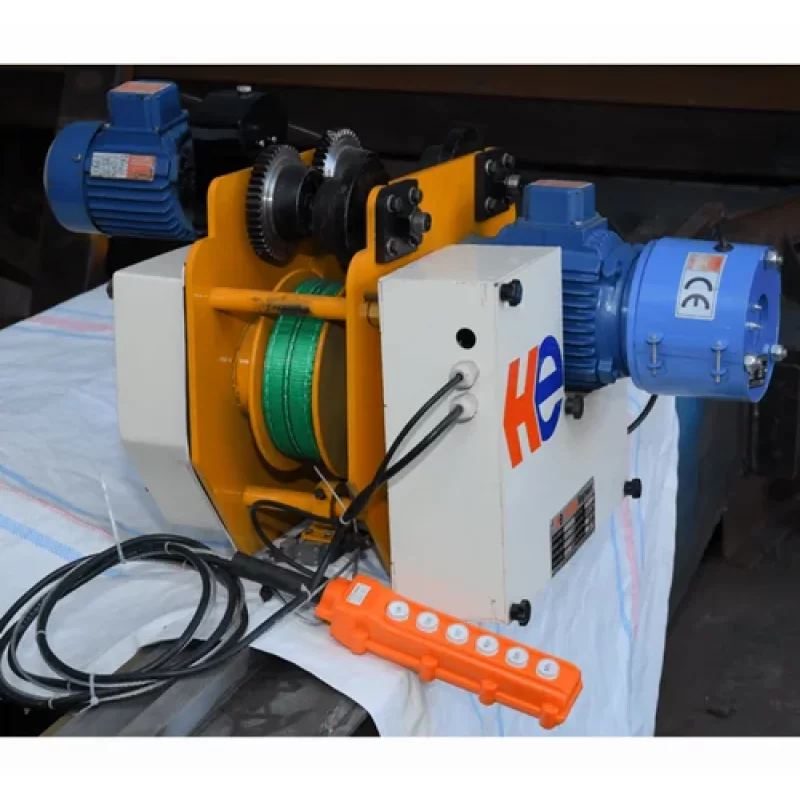

• Mini Compact Electric Nylon Hoist (Single-phase)

Lifting Capacity

• Rated Load: 250 kg to 2000 kg
• Lift Height Options: 3m, 6m, 9m, and 12m
• Pulling Force: Low-effort design for manual chain versions
• Motorized Variants: Available with up to 1.5 kW compact motor

Features

• Rustproof nylon-reinforced body shell
• Load chain or rope rated for heat and abrasion resistance
• Compact casing with 360° swivel hook
• Internal gear-driven mechanical brake
• Maintenance-free sealed bearings
• Optional limit switch and thermal protector in motorized units

Specification

• Body Material: High-strength engineering nylon
• Load Chain: G80-grade alloy steel (manual), SS wire rope (motorized)
• Drive Type: Manual / Electric / Dual-mode
• Control Voltage (Electric Models): 220V / 415V
• Protection: IP54-rated motor enclosure
• Hook: Forged steel hook with safety latch
• Certification: ISO standard manufacturing, CE available

Regional Coordination

We are offering full dispatch support, model guidance, and fitment consultation for clients in Pune and Coimbatore. In addition to our commitment to quality and customer satisfaction, we ensure each hoist is tested for weight load, brake response, and operational clearance. Compact nylon hoists are widely used in domestic and industrial sectors requiring portable, clean-lift operations.
